TAIJI anesthesia machine
- Dual channels with independent switches for chamber and mask, so one animal can be induced while another is maintained
- Each vaporizer is individually calibrated for a stable output that doesn't drift with flow, temperature or pressure
- Easy Fill dosing with a tight seal
- Angled oxygen flush button that takes less effort to press
- Compact, integrated design with streamlined tubing connections
| Flowmeter | 0–4 L/min |
|---|---|
| Concentration range | Isoflurane 0–5%; Sevoflurane 0–8% |
| Output accuracy | ±0.1 (0–1%); ±0.15 (>1%) |
| Vaporizer capacity | ≥120 mL |
| Operating temperature | 10–35 °C |
| Size | 260 × 220 × 300 mm |
Low-stress induction chamber
Rodents lack the cone cells that sense red light. The red transparent chamber lets you watch the animal while keeping stress and circadian disruption low.
- Open space for inducing several mice at once without restricting standing or sniffing
- Gas inlet at the bottom for fast induction
- Anti-escape design: when the lid opens, the evacuation apparatus quickly pulls excess gas away from the operator
- Works with active recovery systems
V105 Mice and rats, 29 × 15 × 17 cm · V106 Mice, 16 × 10 × 11 cm
Waste gas evacuation
Keep anesthetic gas out of the room. Use the filter canister alone for passive recovery, or pair it with the R546Pro for active recovery with zero leakage.
Gas Filter Canister
- Adsorbs isoflurane, sevoflurane, enflurane and other anesthetic waste gases
- Single use, no secondary contamination
- For mice, rats, rabbits, dogs and cats
- Works with passive and active setups
- Two sizes
| Model | Description | Weight | Capacity |
|---|---|---|---|
| R510-31-6 | Gas Filter Canister, Large, pack of 6 | 800 g (adsorbs 200 g) | Waste gas from 200 mL isoflurane (two bottles) |
| R510-31S-6 | Gas Filter Canister, Small, pack of 6 | 250 g (adsorbs 50 g) | Waste gas from 50 mL isoflurane (half a bottle) |

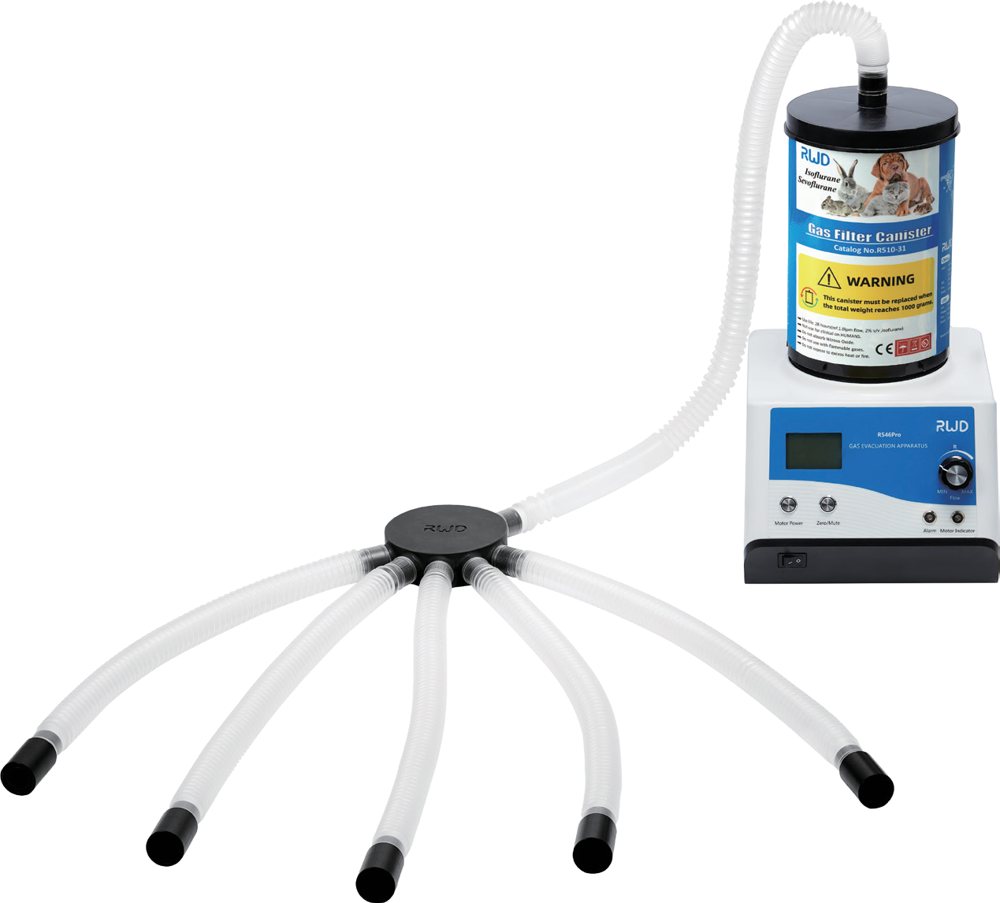

R546Pro Gas Evacuation Apparatus with Weight Monitoring
- Active waste gas recovery with an ultra-quiet motor
- Multi-channel recovery; flow continuously adjustable, shown on the LED display
- Built-in scale with audible and visual alarms: saturation warning at ≥990 g, overload alarm at ≥1010 g
- Paired with the filter canister for zero gas leakage

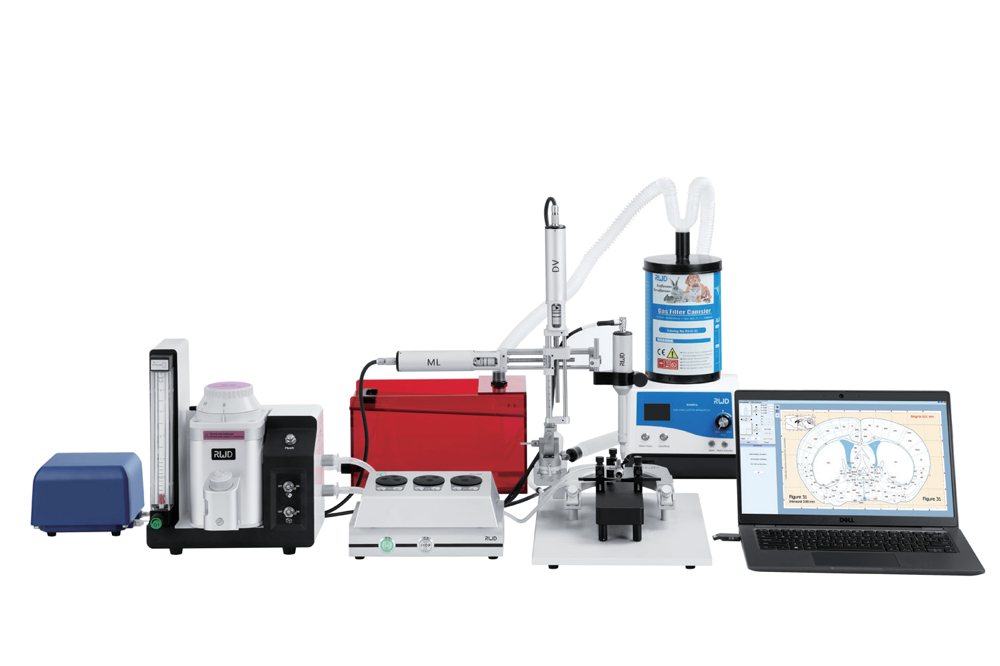

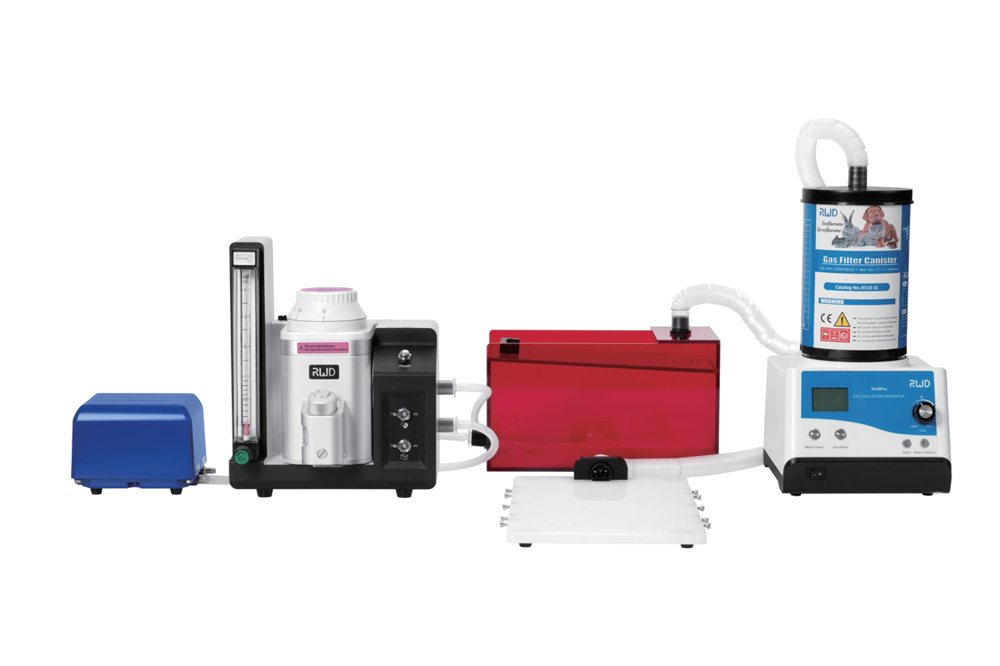

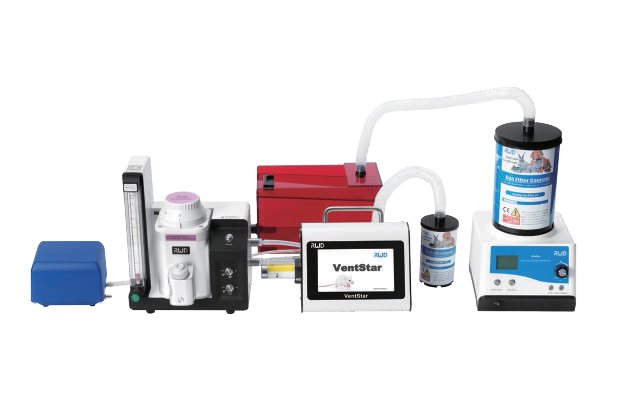

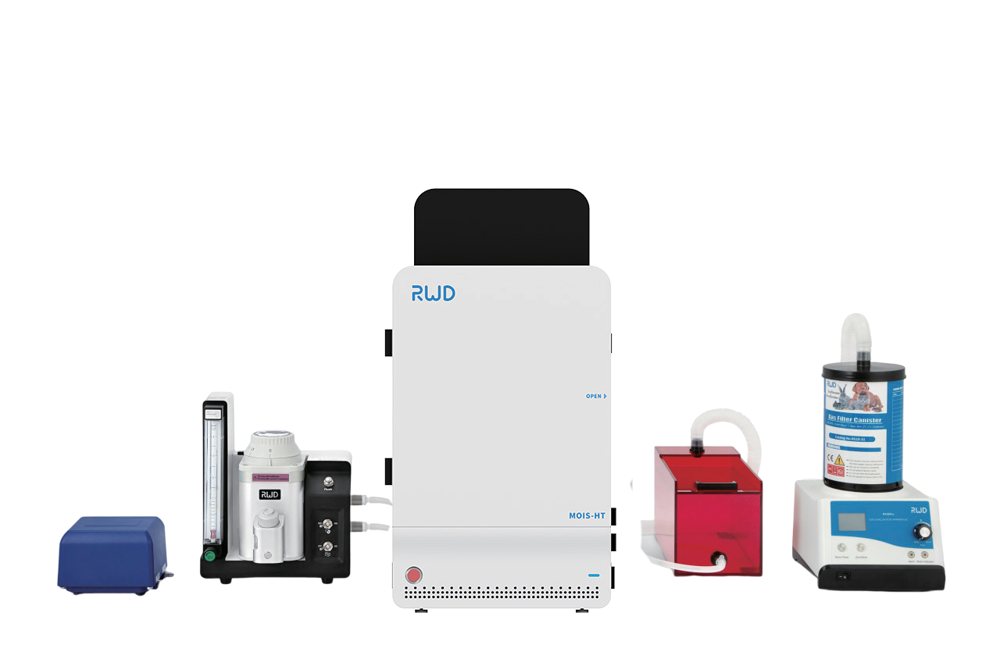

Complete anesthesia solutions
We can quote the whole bench: machine, chamber, evacuation, pump and trolley, sized for your procedure.
Order information
| Model | Description | Notes |
|---|---|---|
| TAIJI-IE | Compact Small Animal Anesthesia Machine, Isoflurane, Easy Fill, 0–4 L | |
| TAIJI-SE | Compact Small Animal Anesthesia Machine, Sevoflurane, Easy Fill, 0–4 L | |
| V105 | Low Stress Induction Chamber, Mice and Rats (29 × 15 × 17 cm) | Includes tubing for mask and chamber |
| V106 | Low Stress Induction Chamber, Mice (16 × 10 × 11 cm) | |
| R546Pro | Gas Evacuation Apparatus with Weight Monitoring | Includes tubing for the evacuation apparatus |
| R510-29 | Air Pump | Includes tubing for the anesthesia machine |
| R510-T | Multi-Function Mobile Trolley | |
| R510-31-6 | Gas Filter Canister, Large, pack of 6 | |
| R510-31S-6 | Gas Filter Canister, Small, pack of 6 |
