Two versions
Specifications
| Eyepiece | 10X, field of view Ø22 mm; 20X (WF20X, Ø12 mm) optional |
|---|---|
| Objective | 0.67X–4.5X continuous zoom, ratio 1:6.7 |
| Binocular head | Pupil distance 55–77 mm; diopter ±5; 45° incline; 360° rotation |
| Field of view | 31.2 mm – 5.1 mm |
| Total magnification | 6.7X–45X (10X eyepiece); 3.5X–22.5X (10X eyepiece + 0.5X auxiliary lens) |
| Working distance | 105 mm (10X eyepiece); 177 mm (with 0.5X auxiliary lens) |
| Focusing | Adjustable focusing handwheel |
| Universal stand | 360° rotation, retractable arm |
| Illumination | Ring LED |
Standard configuration
- Universal stand (1)

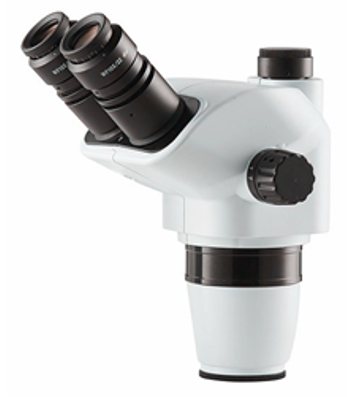

- Binocular drawtube (1); trinocular on 77008S
- 10X eyepieces (1 pair)
- 0.5X auxiliary objective lens (1)
- Ring LED illuminator (1)
- Eye shield (1), dust cover (1), instruction manual (1)
Applications
Small animal surgery, stereotaxic procedures, research and teaching demonstrations, dissection and fine assembly work.
Often ordered together with a stereotaxic instrument and anesthesia system as a complete surgery station.
